Articulated Aerial Platforms

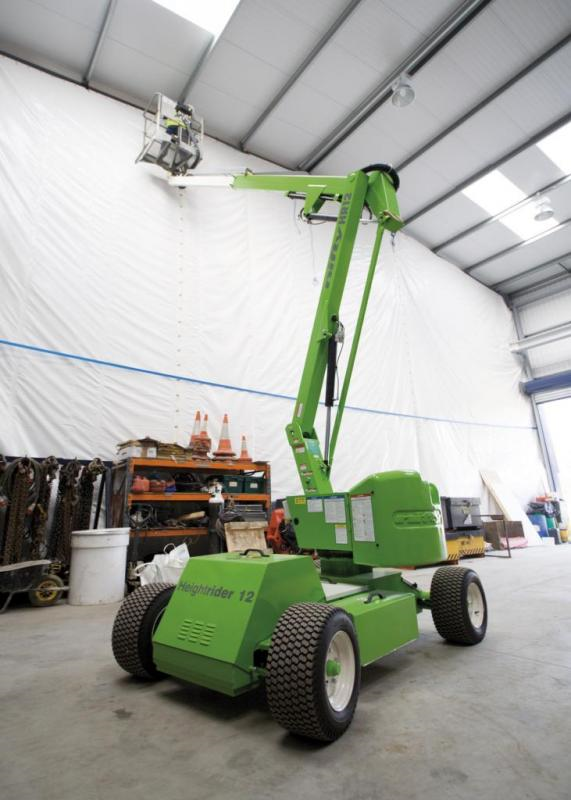

Niftylift HR12N

Niftylift HR12N

  • 1.5m wide, 2WD HR12N Bi-Energy (Battery & Diesel).
  • The Height Rider 12 Narrow self propelled boom lift is one of the most versatile and reliable machines in its class.
  • It is specifically designed to give maximum reach performance from the lightest, most compact base possible.
  • A telescopic upper boom gives the HR12N self propelled boom lift improved accuracy when positioning the platform and superb maneuverability makes it ideal for a wide range of applications.
  • With a 1.50m (4ft 11in) narrow chassis, the HR12N self propelled boom lift is ideal for working in factories, warehouses or anywhere that space is restricted.
  • HR12N self propelled boom lift works for extended periods inside and outside, making it the perfect all-rounder.

Working Height

12.2m (40ft)

Platform Height

10.2m (33ft 6in)

Machine Length

4.1m (13ft 5in)

Machine Width

1.5m (4ft 11in)

Gradeability

25% (14º)

Min Weight

3435kg (7575lbs)

Safe Working Load

200kg (440lbs)

Working Outreach

6.1m (20ft)

Machine Height

1.9m (6ft 3in)

Travel Speed

3.4kph (2.1mph)

Turning Radius

4.2m (13ft 9in)

Cage Size

1.1m x 0.65m (3ft 7in x 2ft 2in)

Power Options

Bi-Energy (Diesel Engine & Battery)

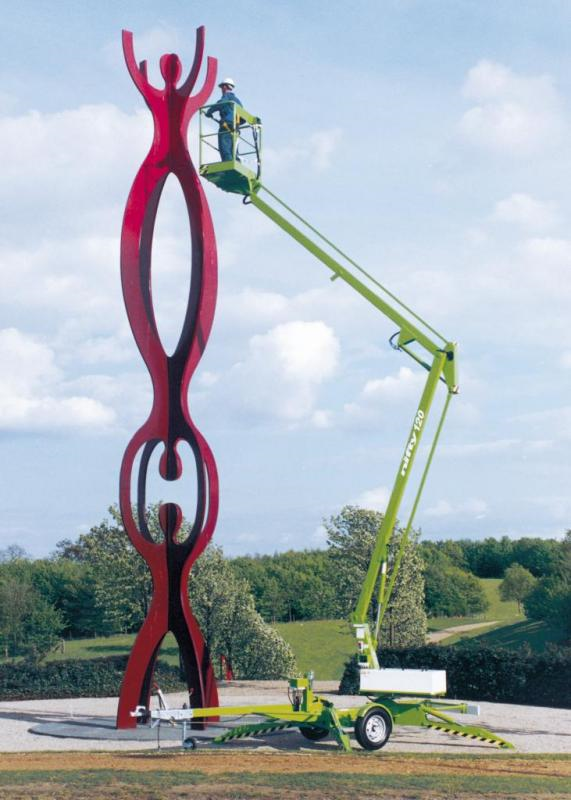

Niftylift N120

Niftylift HR12N

Niftylift N120M1.5m wide, 2WD battery only powered machine with an integral charger. The Nifty 120 is a robust and versatile trailer mount. It has retractable axles that allow it to pass through a 1.1m wide opening or doorway giving better access to applications. As standard, the Nifty 120 trailer mount comes with manual outriggers which are cost effective and simple to setup, but there is also a hydraulic outrigger option to help save time and energy when setting up. Operation is quick, easy and precise due to reliable fully proportional controls and its versatile battery power pack enables the Nifty 120 trailer mounted to work inside and out quietly and with zero emissions. The Nifty 120 trailer mount is a fast, cost effective and safe alternative to ladders and scaffolds.

Power

Electric

Drive

NO

Operation

Full prop. Hyd

Platform Height (feet)

34

Horizontal Outreach (Feet)

16′-6″

Platform rotation (degrees)

NO

Turntable rotation w/o tail swing

SLEW 360



Storage height (feet)

6′-3″

Storage length (feet)

18

Platform cabin size (feet)

3′-7″ x 2′-2″

Lift capacity (Kg)

200

Tire type

Airfilled

For complete product range, click here

Scissor Lifts/Platforms

Skyjack SJIII 3220 Electric Scissor Lift

Skyjack SJIII 3220 Electric Scissor Lift

  • Drivable at full height with roll out deck fully extended
  • Variable speed, rear two-wheel hydraulic drive
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 0.91 m roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • Relay based control system
  • Color coded and numbered wiring system
  • 30% gradeability
  • Solid rubber, non-marking tyres
  • Pothole protection system
  • Wiring for AC outlet on platform
  • Tilt alarm with drive & lift cut-out
  • Overload sensing system
  • Lowering warning system
  • Operator horn
  • Half height spring hinged gate
  • Hinged railing system
  • Lanyard attachment points
  • Forklift pockets and tie down/lift lugs
  • 1.83 m powered extension deck (3220 only)
  • 250 Ah batteries
  • All motion audible alarm
  • Dual flashing lights
  • AGM batteries
  • Shroud-style control box guard
  • Pipe racks
  • Drywall/board carrier

Extension Deck (Roll Out)

0.91 m

Ground Clearance (Stowed)

8.89 cm

Ground Clearance (Raised)

1.90 cm

Wheelbase

1.75 m

Weight

1,594 kg

Gradeability

30%

Turning Radius (Inside)

1.27 m

Turning Radius (Outside)

2.74 m

Lift Time (With Rated Load)

33 sec

Lower time (With Rated Load)

29 sec

Drive Speed (Stowed)

3.2 km/h

Drive Speed (Raised)

1.1 km/h

Maximum Drive Height

Full Height

Capacity (Overall)

408 kg

Distributed Capacity (Main Platform)

272 kg

Distributed Capacity (Extension Deck)

136 kg

Local Floor Load (With Rated Load)

897 kPa

Overall Floor Load (With Rated Load)

12 kPa

Tyre Type

Solid, N/M

Tyre Size

16 x 5 x12



Skyjack SJIII 4626 Electric Scissor Lift

Skyjack SJIII 4626 Electric Scissor Lift

  • Drivable at full height with roll out deck fully extended
  • Variable speed, rear two-wheel hydraulic drive
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 1.22 m roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • Relay based control system
  • Color coded and numbered wiring system
  • 30% gradeability
  • Solid rubber, non-marking tyres
  • Pothole protection system
  • Wiring for AC outlet on platform
  • Tilt alarm with drive & lift cut-out
  • Overload sensing system
  • Lowering warning system
  • Operator horn
  • Half height spring hinged gate
  • Hinged railing system
  • Lanyard attachment points
  • Forklift pockets and tie down/lift lugs

Extension Deck (Roll Out)

1.22 m

Ground Clearance (Stowed)

8.89 cm

Ground Clearance (Raised)

1.91 cm

Wheelbase

1.75 m

Weight

2,170 kg

Gradeability

30%

Turning Radius (Inside)

1.21 m

Turning Radius (Outside)

2.37 m

Lift Time (With Rated Load)

54 sec

Lower time (With Rated Load)

32 sec

Drive Speed (Stowed)

3.2 km/h

Drive Speed (Raised)

1.1 km/h

Maximum Drive Height

Full Height

Capacity (Overall)

454 kg

Distributed Capacity (Main Platform)

318 kg

Distributed Capacity (Extension Deck)

136 kg

Local Floor Load (With Rated Load)

1544 kPa

Overall Floor Load (With Rated Load)

10 kPa

Maximum # of Persons (indoor/outdoor)

3/2

Tyre Type

Solid, N/M

Tyre Size 16 x 5 x 12 16 x 5 x 12

16 x 5 x 12



For complete product range, click here

Single and Double Mast Platforms

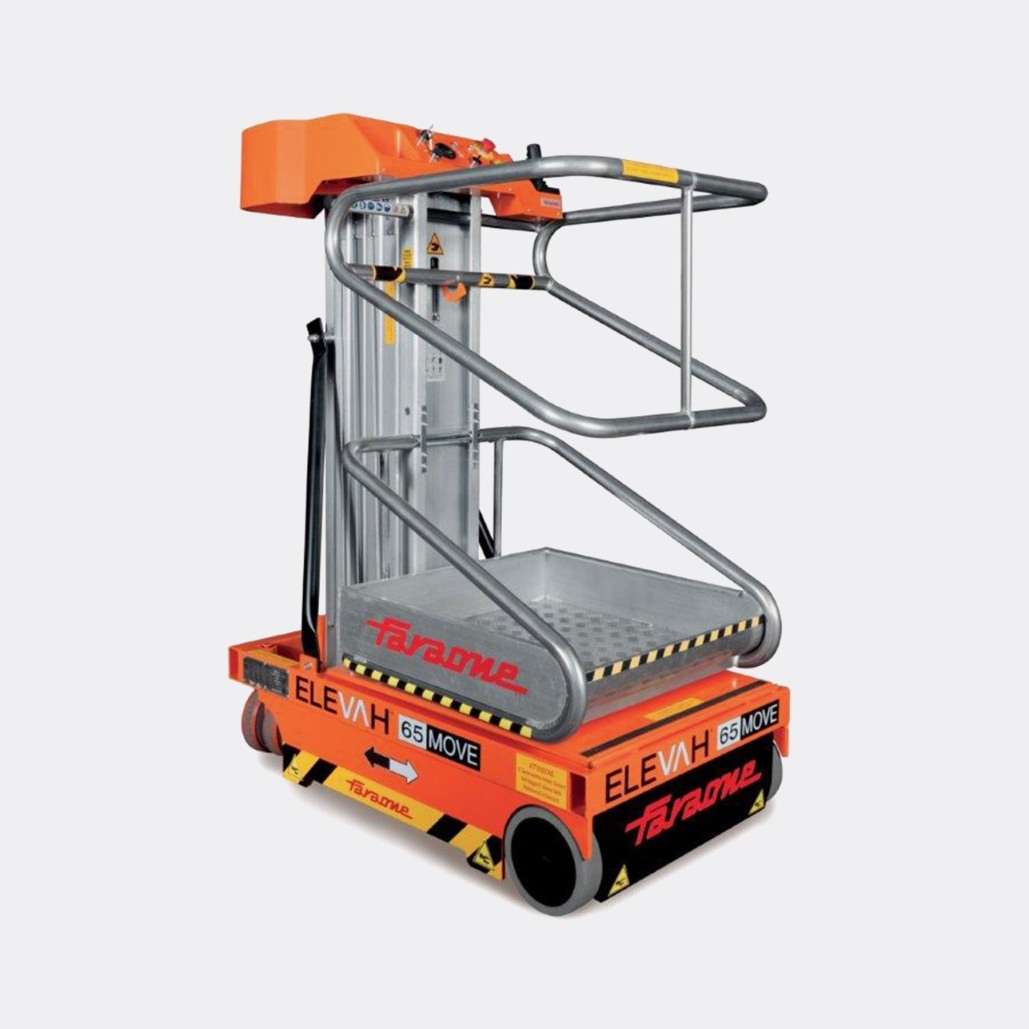

Faraone elevah 65 move self propelled vertical mast lift

Faraone elevah 65 move self propelled vertical mast lift


EIevah 65 Move® is the electrical ladder of new generation that allows maintenance work up to 6.5m.

  • Practical and safe, grants your establishment a profit in saving time with the maximum efficiency.
  • Agile on every ground – special non-marking wheels allow you to work on any type of flooring. In case of holes the retractable skirt touches the floor, automatically stopping the machine, allowing a safe descent.
  • Self-propelled at the Height – self-propelled when raised thanks to practical joystick.
  • Compact and Practical – compactness and lightweight make this self-propelled machine, weighing only 593 kg, unique in its performance.
  • Easy to Use – the basket is provided with an easy opening, really comfortable, with automatic locking function, when the platform comes into operation.
  • A large storage compartment with shelf, facilitates picking.
  • Everything is under control and close at hand with a complete control panel, ergonomic and efficient.

Max  Drive  Height (Platform)

4600mm

Turning  Radius

1095mm

Driving Wheels Dimensions

Ø220 x 60mm

Idle Wheels Dimensions

Ø200 x 45mm

Overall   Width

780mm

Overall Length

1280mm

Batteries

2 x 12V – 95A

Battery Charger

220V

Lift Capacity

200kg



AHI UE20 Central
Mast Lift

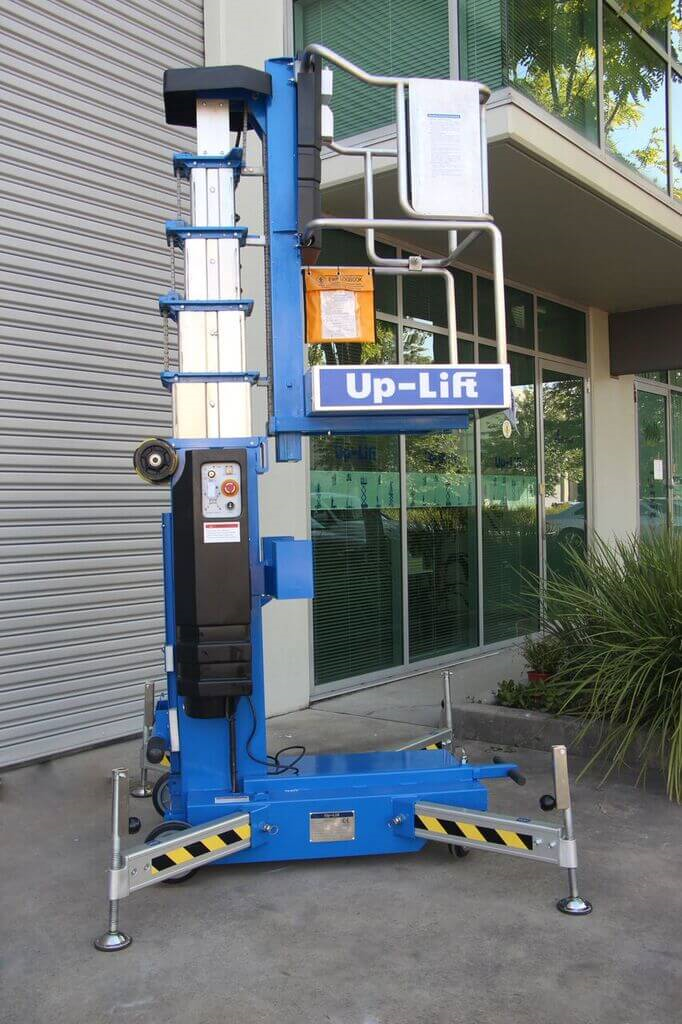

AHI UE20 Central Mast Lift


  • Up-Lift UE series Man Lifts are designed with a special focus on human safety and ergonomic requirements.
  • They are compact, with superior external finishes, light and easy to handle, and meet the highest quality and safety standards.
  • The UE 20 has a working height of 8.1m and is fitted with tilt back support for easy transportation and storage.

Max Platform Height m

6.1

Max Working Height m

8.1

Rated Load kg

159

Stored Dimensions m

1.29x0.74x1.82

Voltage AC

230

Total Weight AC Model

320

Power Rating AC kW

1.1

Platform Dimensions m

0.68x0.66x1.32

Outrigger Foot-Print m

1.47x1.55

Packaging Dimension (m)

1.58x0.92x2.0

Dimensions

470x1030x1160



AHI UT 33NS Aerial Work
Platform Up-Lift




AHI UE20 Central Mast Lift


Up-Lift UT 33NS mast boom lift is compact and light weight in construction. The high strength extruded aluminium masts provide the base for a more stable platform to conduct aerial works. The twin mast can carry one or two men with a working capacity of 200kg. Up-Lift UT 33 NS boom lift is extensively used for cleanings, decorating, maintenance and aerial signage work in offices, hotels, restaurants, department stores, emporiums, shopping centers, airport departure lounges, sports stadiums, convention centers and stadiums, as well as factories, hospitals, universities and colleges. It is designed to pass through standard doorways and elevator lifts and is especially suited to small confined working space applications.

  • Back-up power for emergency power down
  • Under 2 meters stored height
  • Outrigger indicator lights
  • Descend alarm
  • Operated by Dynamic Hydraulic System
  • Two person capacity
  • Larger Platform area
  • Manual Release Valve
  • Dual Control Switch (One on Ground Control Box and One on Platform Deck)
  • Safety Valve to Perform Sudden Drop of Platform
  • Overload Protection
  • Anti Slip Platform Deck
  • Special Rubber Wheels for Sensitive Flooring
  • Special stored dimensions of 0.86m x 1.80m (W x H) enabling the aerial platform to pass through the pre installed gates having dimensions 1.2m x 1.9m (W x H)

Max Platform Height

9.0 meters

Stored Height

1.8 meters

Max Working Height

11.0 meters

Rated Load

200 kg

Stored Dimensions

1.80x0.86x1.80 meters

Platform Dimensions

1.70x0.70x1.10 meters

Outrigger Footprint

2.10x3.10 meters

Wall Access Distance

0.68 meters

Voltage

220 V / 50 Hz.

Total Weight

620 kg

Power Ratting

1.1 kW

For complete product range by our principal Access Holdings International, click here
For complete product range by our principal Faraone, click here
