Ride On Sweepers

Hako Sweepmaster
B800 R

Hako Sweepmaster B800 R

The Sweepmaster B800 R works according to the overhead throwing principle which ensures the hopper is filled to the full. This promotes uninterrupted work and a constant, first class sweeping performance. To ensure the machine continues to provide consistent cleaning results, the filter in the insert can be shaken clean occasionally. To clean it after completing work, it can be accessed from the clean side easily and quickly. The robust, steel frame construction in heavy-duty quality means the Hako-Sweepmaster is a machine for professional use which can clean surfaces thoroughly and efficiently for a number of years!

Drive motor (V/W)

24 /600

Sweeping drive (V/W)

24 /600

Battery capacity (Ah)

105

Sweeping width Without Side Brooms (mm)

670

Sweeping width with Two side Brooms (cm)

1,110

Sweeping speed (km/h)

6

Sweeping performance (m2/h)

6,660

Filter surface (m²)

1.5

Dirt hopper (l)

2 x 30

Weight, ready to operate (kg)

286

Width/Length/Height

998/1282/1,237 mm




Hako PowerBoss Armadillo 9XR

Hako PowerBoss Armadillo 9XR

The sweepmaster 980 R vacuum sweeper can be tailored to meet any need e.g. comfort seat, warning light, LPG drive, raised dumping, left-hand side brush, vacuum cleaner for electric vehicles, cab safety roof and much more. Machine can be assembled to fulfill individual needs.

The large innovative cylindrical brush together with powerful suction turbine achieves perfect sweeping results.

Hako resonance shaking system enables long periods between cleaning and a filtration efficiency of over 99%.

  • Quick-change system.
  • Front coupling triangle for all attachments with low noise hydraulic drive.
  • Perfect Sweeping Results – Maximally two side brooms can be fitted enabling thorough sweeping close to borders. A powerful suction turbine, equipped with a panel air filter with a filtration efficiency of over 90%.
  • • The Optimum Drive Solution for Every Purpose – the sweepmaster 980 R powered by liquefied petroleum gas (LPG) option provide a particularly clean and efficient drive. Operating time of up to 4.5 hours without interruption are possible.
  • Convenient in Use Dirt Hoppers – two dirt hoppers can be removed and emptied easily.
  • High Dump – the dirt hoppers can be raised and emptied at a touch of button.
  • Maneuverability – minimal turning circle for confined spaces.

Sweeping Width without brushes

122 cm

sweeping width with1/2 side brushes

156/193 cm

sweeping performance( m2/h)

25,000

Dirt hopper volume (l)

600

dump height (cm)

162

filter surface (m2)

11,0

power output (kW)

33,0

sweeping speed (km/h)

13,0

weight (kg)

1,710

Width/Length/Height

1,520x2,790,1,470 mm

Hako Sweepmaster
P980 R

Hako PowerBoss Armadillo 9XR

The sweepmaster 980 R vacuum sweeper can be tailored to meet any need e.g. comfort seat, warning light, LPG drive, raised dumping, left-hand side brush, vacuum cleaner for electric vehicles, cab safety roof and much more. Machine can be assembled to fulfill individual needs.

The large innovative cylindrical brush together with powerful suction turbine achieves perfect sweeping results.

Hako resonance shaking system enables long periods between cleaning and a filtration efficiency of over 99%.

  • Perfect Sweeping Results – Maximally two side brooms can be fitted enabling thorough sweeping close to borders. A powerful suction turbine, equipped with a panel air filter with a filtration efficiency of over 90%.
  • The Optimum Drive Solution for Every Purpose – the sweepmaster 980 R powered by liquefied petroleum gas (LPG) option provide a particularly clean and efficient drive. Operating time of up to 4.5 hours without interruption are possible.
  • Convenient in Use Dirt Hoppers – two dirt hoppers can be removed and emptied easily.
  • High Dump – the dirt hoppers can be raised and emptied at a touch of button.
  • Convenient in Use Dirt Hoppers – two dirt hoppers can be removed and emptied easily.
  • High Dump – the dirt hoppers can be raised and emptied at a touch of button.
  • Maneuverability – minimal turning circle for confined spaces.

Sweeping Width without brushes

70 cm

sweeping width with1/2 side brushes

95/120 cm

sweeping performance( km2/h)

6.0

Dirt hopper volume (l)

2x30 L

filter surface (m2)

3

power output (kW)

2,3

sweeping speed (km/h)

6,0

weight (kg)

380

Length x width

1,500 x 1,000

height /with roof

1,300/2,000



Walk Behind Sweepers

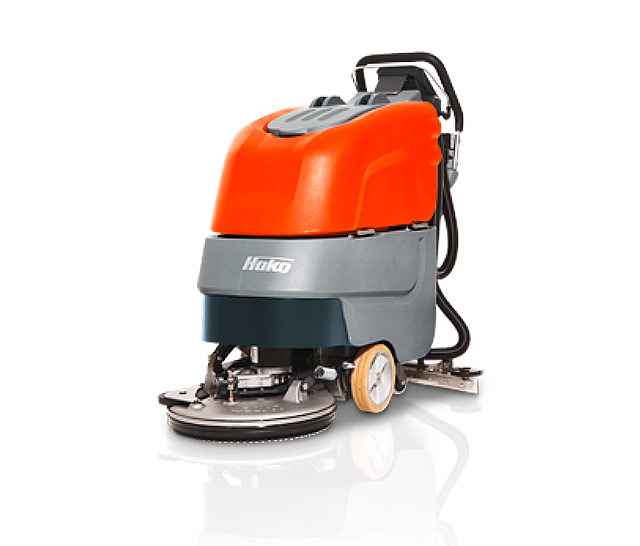

Scrubmaster B30

Scrubmaster B30

The Scrubmaster B30 is a pedestrian scrubber-drier ideal for use in small and medium sized areas.

  • Simply laid out and compact design and construction
  • Fitted with an onboard battery charger and an easily accessible charging cable
  • Electrical BRS system (brush release system)
  • Squeegee rubbers/seals can be changed without tools
  • Chemical dosing system (optional)
  • Hako AquaStop enables the accurate application and efficient use of the cleaning solution

working width

43

squeegee width

76cm

area coverage

1700

brush system

1 plate

brush diameter

43 cm

drive

24 V battery wheel drive

battery capacity (Ah)

80 Ah

working speed (km/h)

4 km/h

total output(kw)

1. 13 kW

clean water tank

30l

dirty water tank

30l

operating time (max)

110 minutes

width with/without squeegee

76 cm (with squeegee)

50 cm (without squeegee)

length with squeegee

127 cm

height above handle bar

110 cm

noise

64 dB (A)

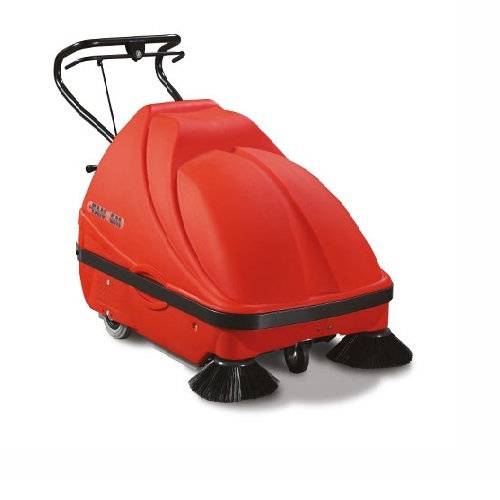

Hako Sweepmaster M600

Hako Sweepmaster M600

M600 is manually operated sweeper having unequalled high sweeping and collecting capacity for up to 2,300 m2/hour.

  • Suitability – Suitable for small areas being fitted with an indestructible plastic dirt hopper, an impact-resistant steel frame and solid aluminium housing.
  • Maneuverability – particularly handy, maneuverable and extremely easy to operate. A practical solution for trade, commercial and industrial sites as well as demanding property owners.
  • Clean operation – the side brush sweeps the dirt thoroughly from the corners and borders directly into the path of the wide cylindrical brush. The dirt hoppers are very easy to remove and empty.
  • Handlebar/Grip – the handlebar position can be adjusted optimally for every user, thanks to its ergonomic design and can be changed around.
  • Overcoming obstacles – kerbs and stairs can be negotiated without any problem, thanks to the large wheels which project at the rear. Fits through any door.

working width

48 cm

sweeping width with side brush

67 cm

area coverage

2,300 m2/h

Dirt hopper volume

40 L

width

790 mm

Weight, ready to use

24 kg

Length with side brush

1,330 mm

length/with handle shaft

1,330/1,550 mm

height/with handle shaft

900/1,060 mm



Hako Sweepmaster B800

Hako Sweepmaster M600

When dealing with the dust-free cleaning of small and medium-sized areas, the sweepmaster B800 is simply the best option. It provides long periods of uninterrupted work and a constant, first class sweeping result.

  • Reliability – the robust, steel frame construction in heavy-duty quality makes the sweepmaster a really professional device which can clean surfaces efficiently for a number of years.
  • Comfortable Hopper System – the swiveling handlebar simplifies opening the hopper, its easy removal and throwing in large debris. B800 has two dirt hoppers attached, which means better distributed weight and easier to empty hoppers.
  • Maintenance-free Battery Drive – can be charged at any power socket with onboard charger.
  • Close to Edge Cleaning – large overlapping of side brush ensures close to edge cleaning.

drive

600 W electric motor (24V, 70 Ah battery)

sweeping width

670 mm

sweeping performance

3,350 m2/h

sweeping width with side brush

870 mm

sweeping performance with side brush

4,350 m2/h

sweeping speed

5 km/h

dirt hopper volume

2 x 25 L

filter area

1.5 m2

weight (ready to use)

165 kg

width/length/height

800/1,100/715 mm



Road Sweepers

Hako Citymaster 600

Hako Citymaster 600


The Citymaster 600 is a multifunctional compact sweeper with the ability to offer both winter maintenance and grounds maintenance attachments.

  • Quick-change system.
  • Front coupling triangle for all attachments with low noise hydraulic drive.
  • Universal hopper for increased flexibility.
  • Permanent all-wheel drive.
  • Travel speed of 25km/h.
  • Articulated steering for improved manoeuvrability.
  • Easy access for daily maintenance and care

Hopper capacity

600l

Motor

1,350 kg implement carrier) 1,700 kg (sweeping machine)

PERMISSABLE  total weight

2200 kg

(Hxwxl)

1,969mm (cabin)x1,090 (cabin)/1,075mm (standard tyres)x3,126mm

Wheelbase

1.270mm

Track width

866/926mm

Turning radius inside

700mm



Hako Citymaster 1600

Hako Citymaster 600


If you are looking for an efficient, professional sweeper to carry out all your tasks reliably, Citymaster 1600 is the perfect option. It meets your demands perfectly with maximum operating and driving comfort. Whether used exclusively as a compact sweeper or as a versatile implement carrier, this machine embodies Hako’s many years experience in manufacturing sweepers, compact tractors and implement carriers as well as transporters.

  • AGR Quality Seal – The Citymaster 1600 is the only machine bearing the AGR quality seal. The workplace offers superior ergonomics to prevent back problems – which has been independently tested and recommended by the AGR e.V. (German Association for Healthy Backs).
  • Flexibility – the citymaster 1600 is both the sweeper with articulated steering and a multifunctional implement carrier, all in one.
  • Comfort – the full-suspension chassis and the spacious cabin go easy on both the driver and the vehicle. The driver has everything under control thanks to the integrated operating panel – and everything in view thanks to the central display and the panoramic view.
  • Suction System and Dirt Hopper – the tangential suction system with energy-saving fav ensures that the sweeping systems take up dirt reliably while protecting the joints in paving. The efficient separation system ensures optimal filling of the dirt hopper.
  • Sweeping System – 2 or 3 broom systems area available and interchangeable. The two broom system is ideal for use in confined areas and offers the opportunity to sweep corners in reverse mode. The three broom system comprises a variety controlled pre-sweep broom and the basic brroms for transporting dirt to the suction duct.

Speed

40 km/h

dimensions (Hxwxl)

1,970x1,248x4,510/5,170 (standard tyres 2B/3B)

Wheelbase

1,600 mm

Track width

975/1,055 mm

Turning radius inside

1,290 mm



Hako Citymaster 2200

Hako Citymaster 600


The Citymaster 2200 is developed to provide maximum economic efficiency, safety and flexibility when it comes to cleaning public areas. Large high-quality components meet the highest standards in modern municipal technology in terms of quality and durability. Equipped with either two or three broom system and with dirt hopper capacity that is second to none in this class of machines, the vehicle ensures extremely time-efficient sweeping.

  • Three in one, Sweeping, Wet Cleaning, Winter Service – in addition to its fuction as professional sweeper, Citymaster 2200 is extremely flexible in use. The quick change system enables easy demounting of the sweeping technology and machine can be used for wet cleaning or winter service tasks.
  • Ecolabel “Blue Angel” – the eco lablel RAL-UZ 59 “Blue Angel” considers both the permissible noise level and exhaust emissions of a machine to protect the people’s health and the environment .
  • AGR Quality Seal – The Citymaster 2200 is the only machine in this class bearing the AGR quality seal. The workplace offers superior ergonomics to prevent back problems – which has been independently tested and recommended by the AGR e.V. (German Association for Healthy Backs). Only products that have passed a strict test procedure receive the AGR seal of approval.
  • Safety Standards of the Highest Level – safety starts with the vehicle concept. Same high standards have been followed, which includes a safety concept for the driver cabin, as well as disc brakes and ABS integrated into hydrostatic drive. Daytime running light as standard, large reflectors, bright LED flashing beacon, everything has been done for the driver’s safety.

Dirt hopper volume

1,710 L

dimensions (Hxwxl)

4,900x1,300x2,054 mm

Wheelbase

2,190 mm

Track width

1,054 mm
