Leaf Collectors

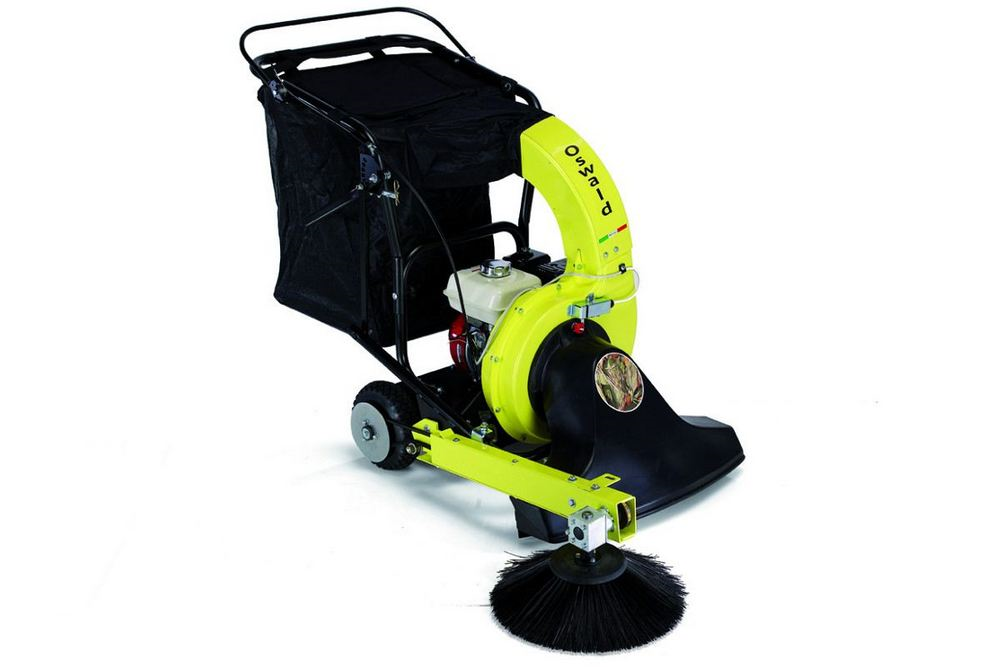

Oswald Vacuum Cleaner – Proline
Oswald Vacuum Cleaner – Proline
Oswald Vacuum Cleaner have been designed to meet the requirements of people wanting to clean large gardens full of leaves but given its structural specifications, it can also be used for cleaning parks and large areas. Other than leaves, it can also suck up cans, waste paper, etc.
- It has self-propulsion system, which allows to work effortlessly, even on sloped terrains, and top-loading of the sack to ensure that It filled completely.
- Oswald Vacuum Cleaner is provided with an extensive selection of 4 stroke motors, and can be supplemented and converted using a series of kits and optional extras.
- Handly and lightweight
- Great suction power
- Total filling the bag
- Made with high quality materials, great strength and durability
- Transmission with differential: greater maneuverability
- Suction height adjustment on 6 levels
- Wide range of optional
|
engine |
B&S vanguard 6,5 hp OS10D2 |
|
transmission |
With differenciale |
|
impeller ø |
330 mm |
|
impeller’s blade thickness |
4 mm |
|
impeller |
With 4 radial blades |
|
manual regulation of suction |
On 6 positions |
|
top-loading of bags |
Yes |
|
bag capacity |
230 lt |
|
wheels |
2 pneumatic + 1 pivoting |
|
safety micro-switch |
Yes |

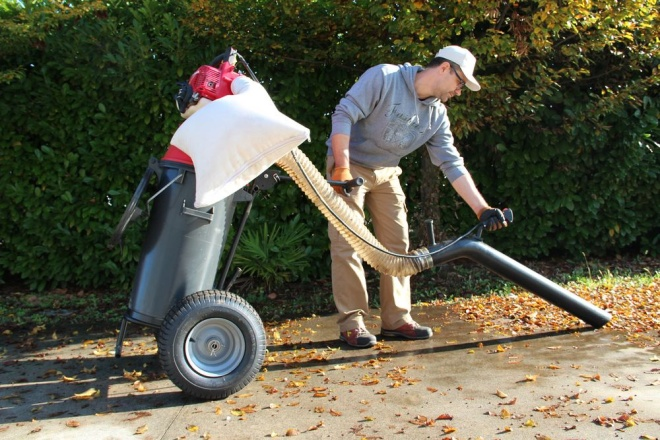

Ossian Trolley Vacuum Cleaner
Oswald Vacuum Cleaner – Proline
|
engine |
Honda GX25T Air Cooled 4 Stroke, OHC |
|
Displacement |
25 cc |
|
Net Power output |
1.0 Hp (.72KW) 7,000 rpm |
|
Carburetor |
Diaphragn-type (overflow return) |
|
Ignition system |
Transistorized Magneto |
|
Starting system |
Recoil |
|
Oil capacity |
80 cc |
|
Fuel |
Unleaded 86 octane of higher |
|
Fuel tank capacity |
0.58 L |
|
Hose diameter |
12.5 cm |
|
Hopper capacity |
50 L |
Olysse Truck Loader
Oswald Vacuum Cleaner – Proline
Olysse is designed to be installed on the rear wall of a truck of medium and large size. Olysse is commonly used by companies that deal with the cleaning of the city, urban green areas, parking, motorway rest areas.
- Designed for medium and heavy-duty work
- Ease to use
- Briggs & Stratton 18hp for a great vacuum power
- Very large working radius (length suction pipe up to 10 meters)
- It can be equipped with humidification kit to reduce dust
- Adjustable, pivoting deflector
- Solid and durable construction
- Directional curve
|
engine |
Briggs & Stratton Vanguard 18 hp bicilindrico |
|
Starting system |
Electric |
|
Impeller diameter |
400 mm |
|
Blades |
6 |
|
Blades thickness |
1 cm |
|
Replacable steel wear liners |
Yes |
|
Safety microswitch |
Yes |
|
Impeller material |
Galvanized steel |
|
Transmission |
Double Belts |
|
Clutch |
Centrifugal clutch |
|
Adjustable rotating exhaust |
Yes 360° |
|
Hose material |
Polyrethane |
|
Hose length |
5 m |
|
Hose diameter |
20 cm |
|
Hose holder bar |
Yes |
|
Weight |
170 kg |
Scarifiers

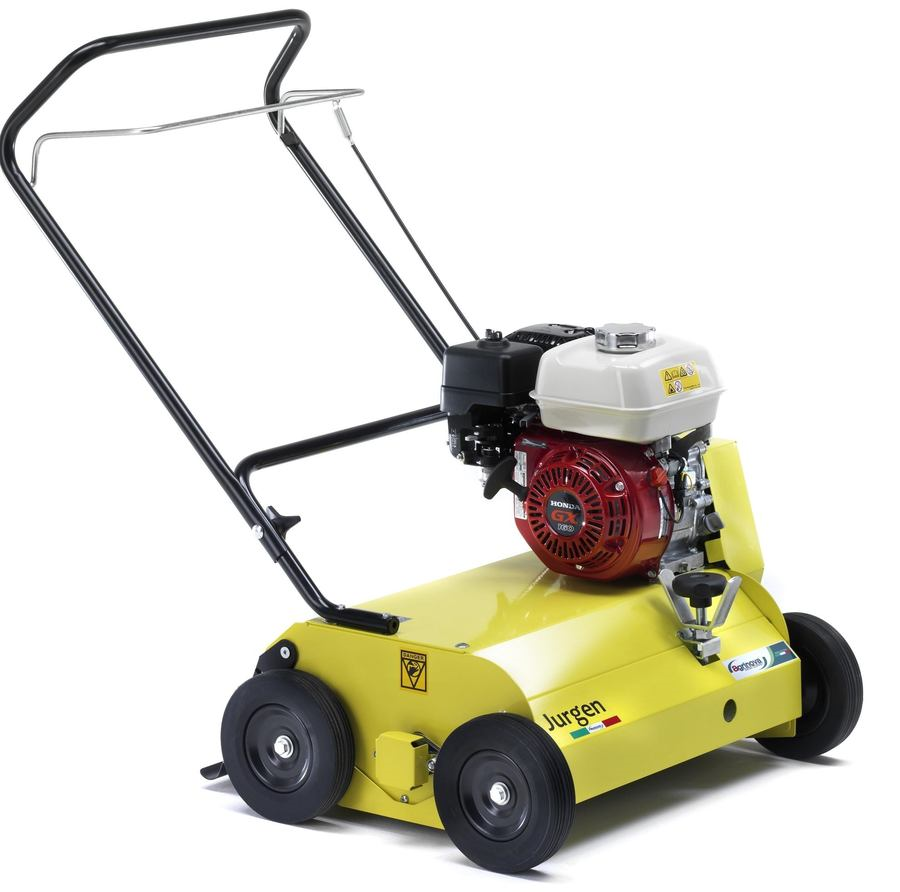

Jurgen Ventilator with 45 cm Thurst
Jurgen Ventilator with 45 cm Thurst
The power rake dedicated to professionals with working width of 45.
- Convenient height adjustment.
- System Belt-pulling system cutting system .
- Industrial bearings with steel support.
- Shaft with mobile swinging
- Knives for shaft with movable knives in hardened steel.
- Wheels with metal rim
|
working width |
45 cm |
|
engine |
Honda GX160 |
|
weight |
53 KG |
|
toothed belts |
2 |
|
wheels |
4 with metal hub |
|
bag |
Yes (Optional) |

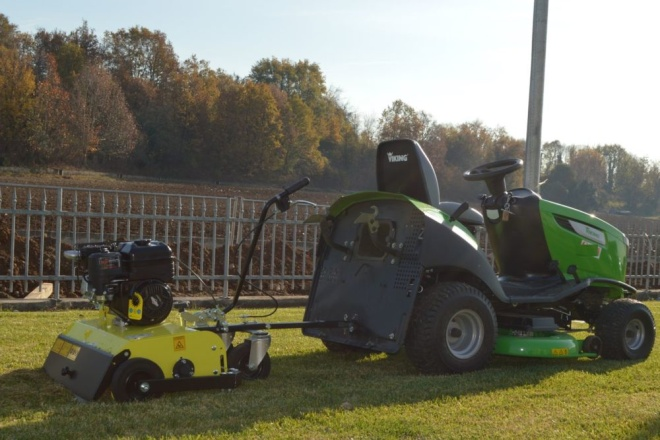

Jeremy Towed Scarifier
Jurgen Ventilator with 45 cm Thurst
Jeremy 70cm is a towed scarifier suitable for equipping lawn tractors and ATVs.
- Convenient height adjustment system.
- Lever that comes close to the tractor seat (easier actuation).
- Motor in the central part of the machine.
- Pivoting drawbar in 2 positions to ensure the coupling with any type of tractor
- 4 wheels with metallic circle (2 front swivel of 360 ° + 2 rear)
- Cutting-belt drive system pulls
- Tree oscillating movable knives
- Knives shaft in hardened steel movable knives

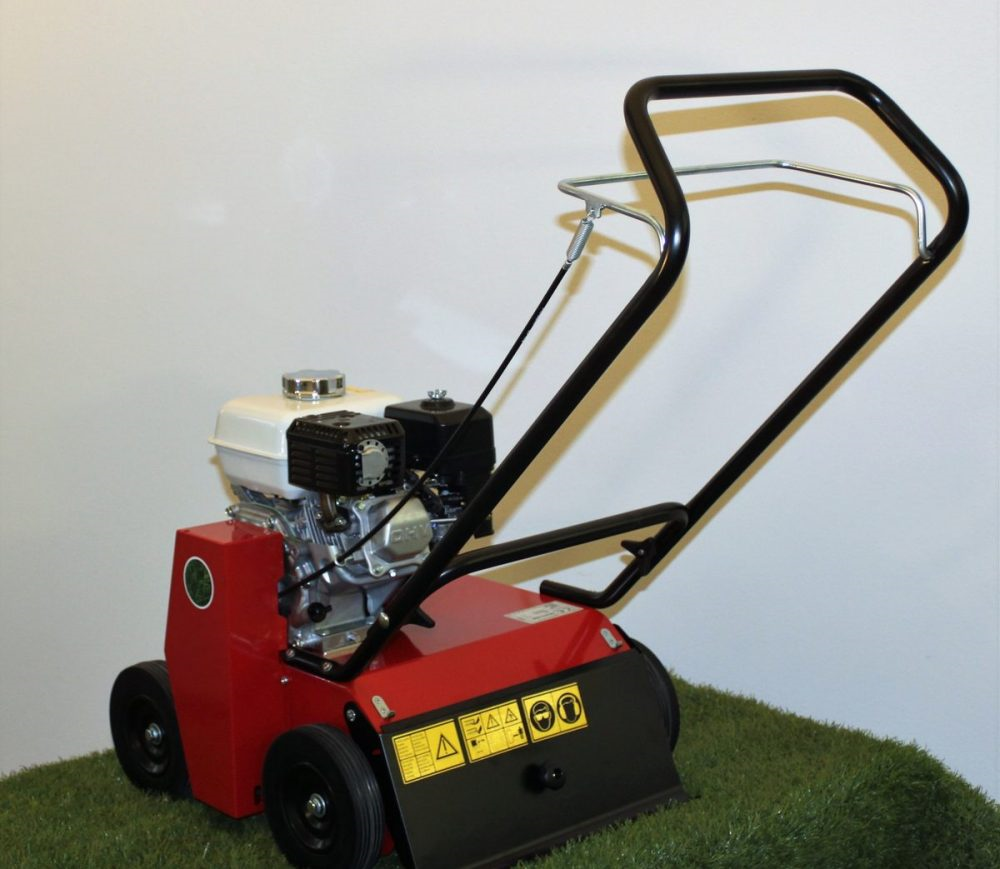

Jeff Scarifier
Jurgen Ventilator with 45 cm Thurst
Jeff power rake is ideal for work on normal and large garden and for renting.
- Shaft with mobile blades – This solution improves the machine performance by maximizing the result and minimizes damage to the knife in contact with hard objects (stones, pieces of metal, concrete edges, etc.)
- The best engines on the market – Jeff is equipped with the best engines on the market: Subaru, Honda, Briggs & Stratton
- Oscillating front wheel axle for perfect adherence to the ground.
- Easy to transport.
Wood Chippers

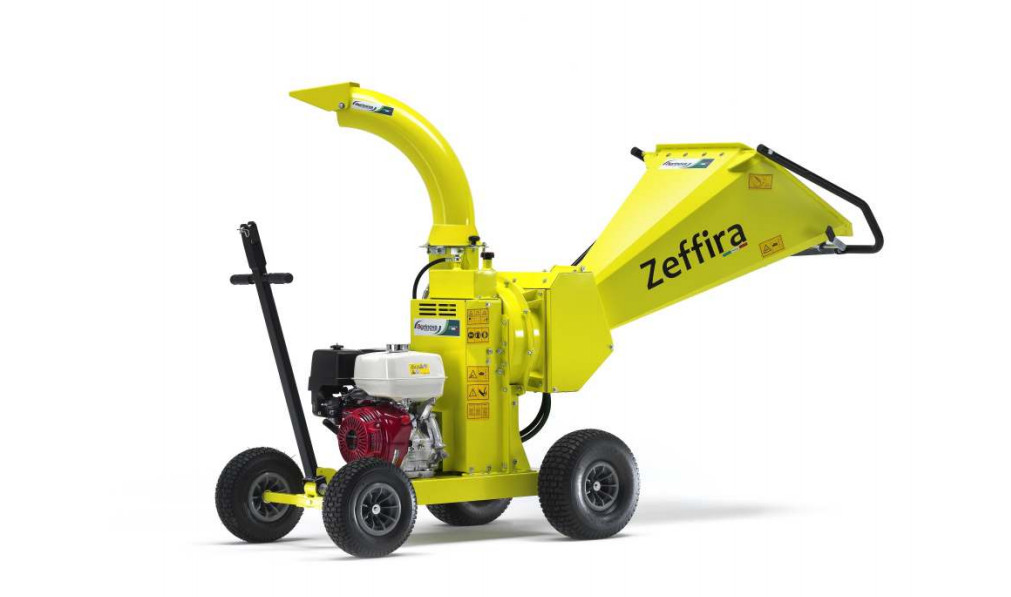

Zeffira Chipper
Zeffira Chipper
Zeffira is a chipper for professional use, suitable to be used by professionals looking for high performance machines but easily maneuver and light weight.
The main salient characteristic of Zeffira is the manageability combined with an excellent cutting system.
Zeffira Wood Chippers are equipped with a cutting system composed by a metal disc having a thickness of 10 mm and a diameter of 38 cm on which are mounted, at the front, two blades carrying out an initial reduction of the material to be shredded; while in the back are mounted two set of hammers, 12 in total, which have the function of pulping and further reduce the material to be chipped, In the rear part are also mounted some pallets which create air to push the shredded material out of the machine through the discharge tube.
|
engine |
Honda GX390 13 HP |
|
Max Cutting Diameter (MM) |
80 |
|
transmission cutting unit |
2V drive belts and centrifugal clutch |
|
hydraulic roller |
Yes – Diameter 170 mm |
|
infed hopper opening |
700xh.520 mm |
|
infed throat capacity |
140xh.182 mm |
|
wheels |
Nr pneumatic type 15*600 |
|
weight |
250 kg |
